KatanaQp ATCA Blade


Above: KatanaQp ATCA board shown

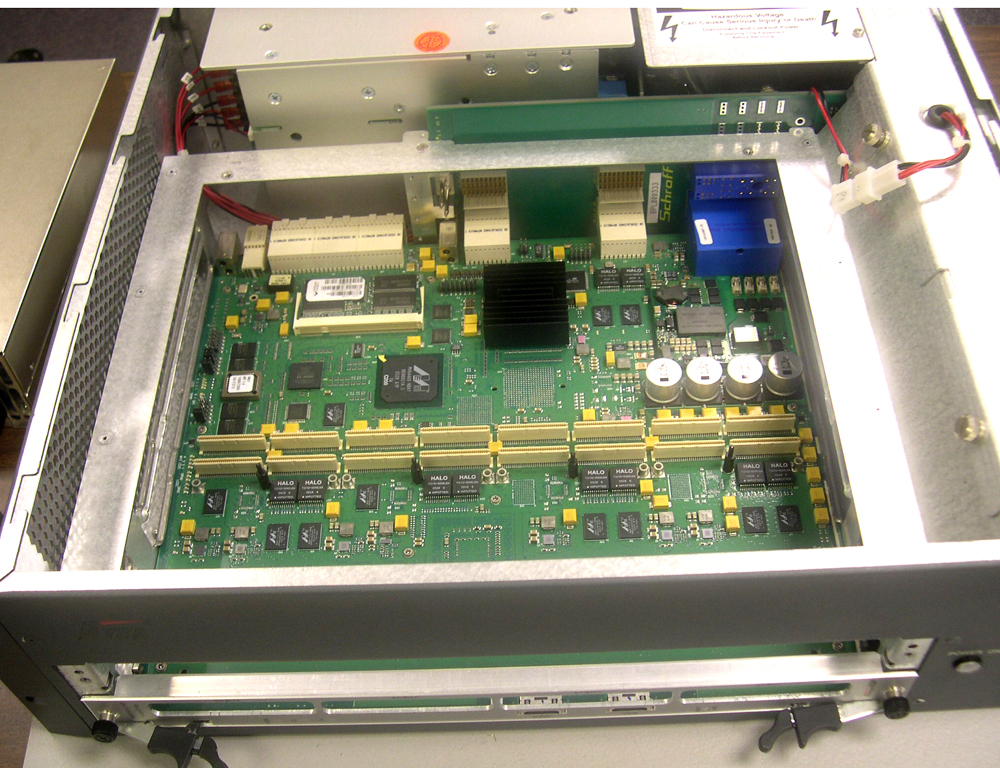

Above: KatanaQp ATCA board shown in a 3U chassis .

The picture at right shows the Emerson KatanaQp ATCA board in a 3U chassis

  • Single or Dual PowerPC™ MPC7447A or MPC7448 processors running at up to 1.3GHz

  • 2-Way SMP Architecture

  • ATCA PICMG 3.1 Node (1000Base-T Base Fabric + Octal High Speed GbE Fabric)

  • Layer 2/3 Ethernet switch option

  • Quad PTMC expansion sites

  • Redundant System Management Bus with IPM Controller

  • Up to 2 GByte DDR SDRAM w/ECC in SO-DIMM package

  • Up to 64MB Linear Flash

  • Real-Time Clock with supercap backup

  • Linux Support
